Description

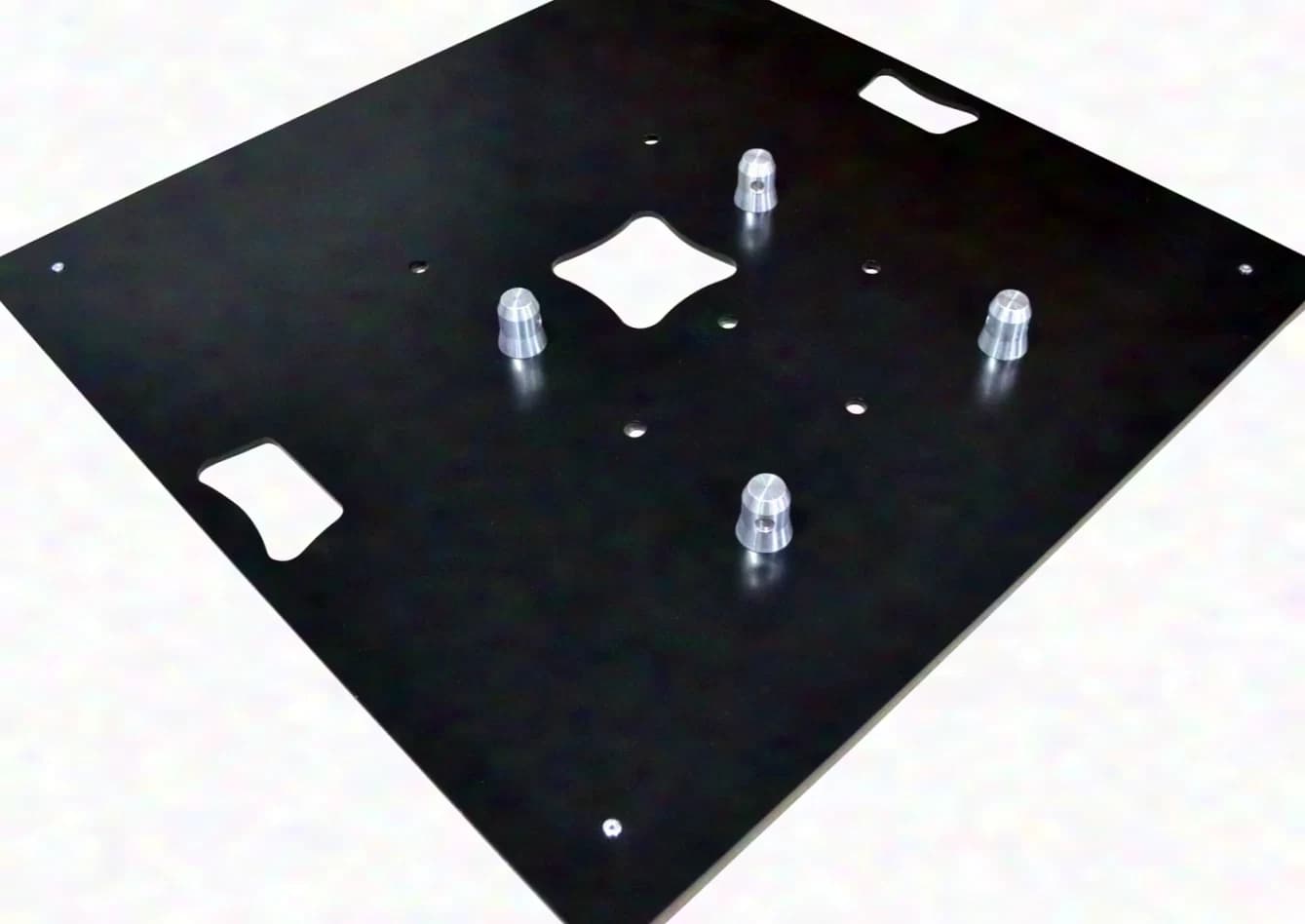

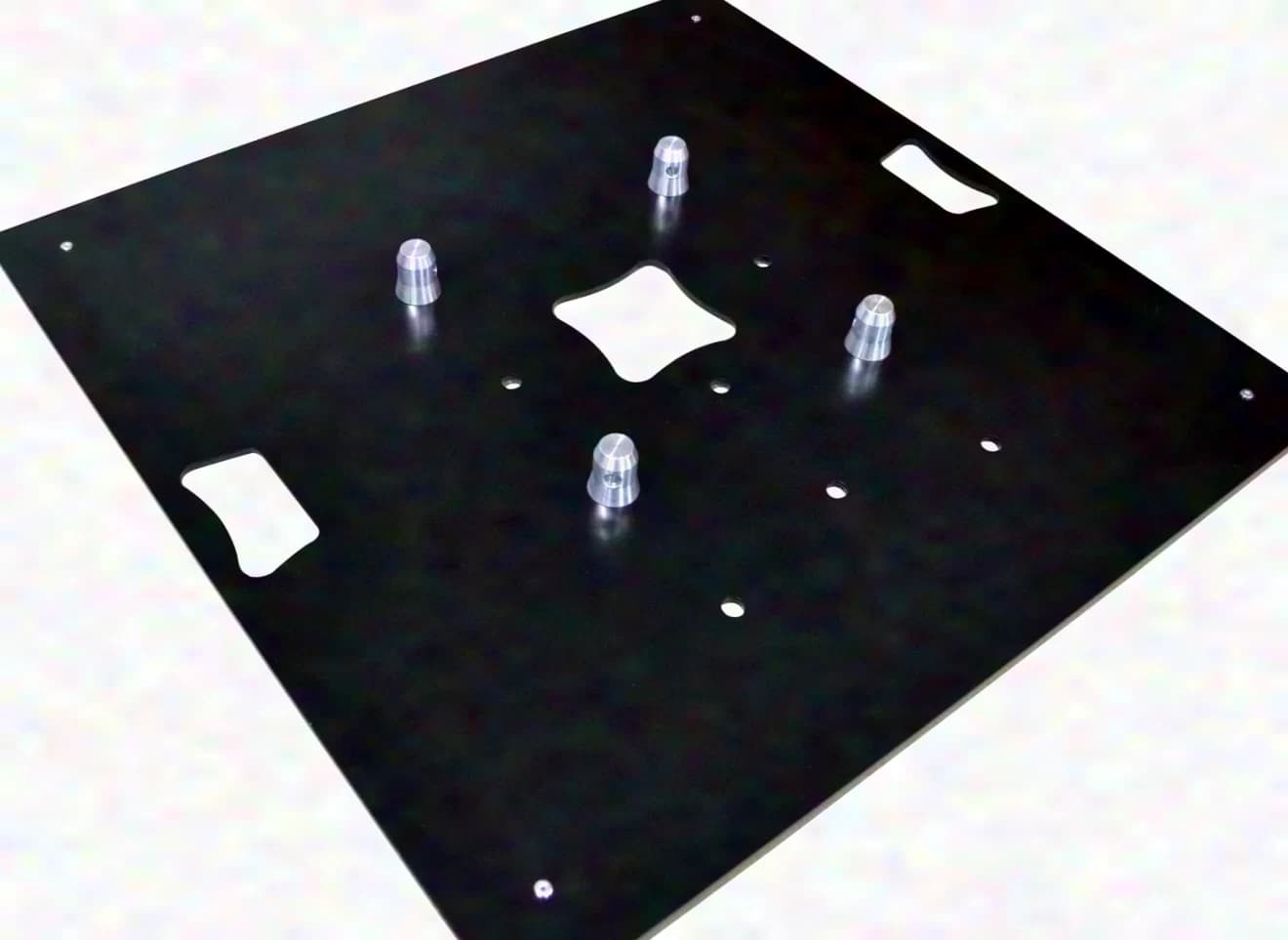

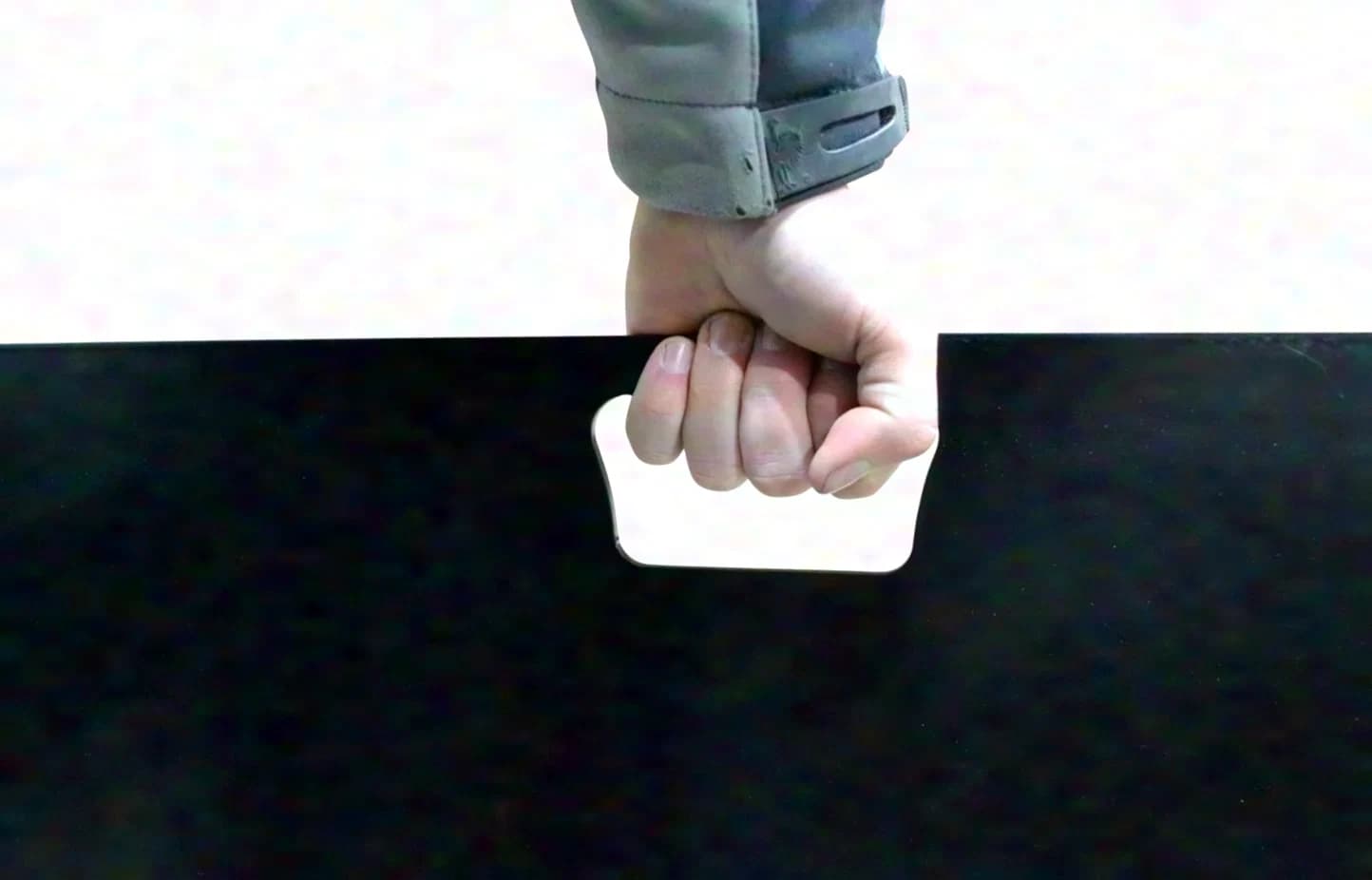

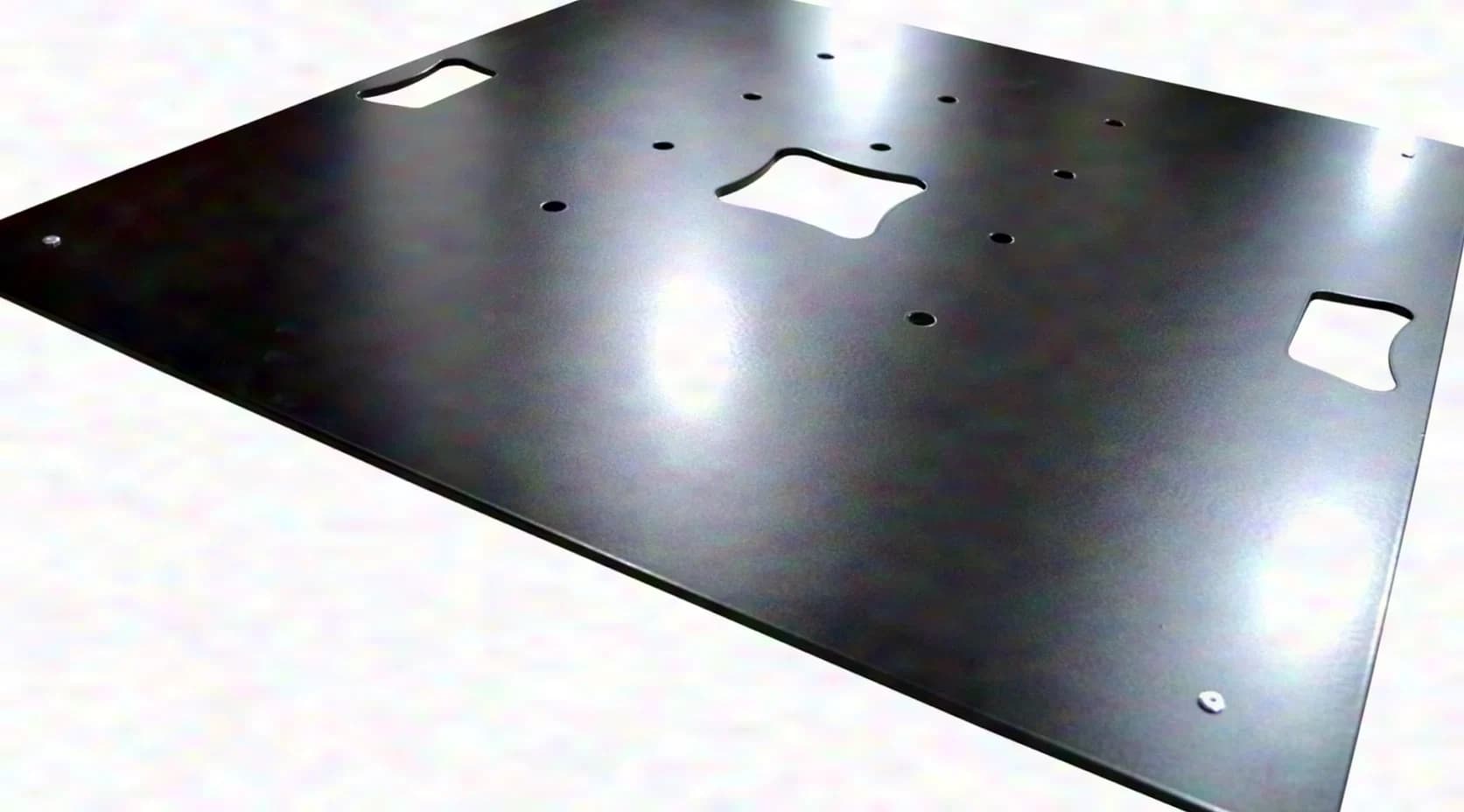

Outer dimensions: 80 cm x 80 cm Material: Steel Material thickness: 8 mm Surface: powder-coated Weight: 40 kg Base plate with a size of 80 x 80 cm and an additional handle – a Basic Plate of our own development. Benefit from our many years of experience in the events industry and from innovative in-house developments. This model is one of the absolute bestsellers in our range. This is a truss base plate which, according to the description, is made of high-strength 6-mm steel and prepared for three- and four-point trusses. The material thickness stated in the technical specifications is 8 mm. Four proven truss feet are attached to the underside and secured with high-quality stainless steel rivets. They ensure a secure, slip-free stand and help protect sensitive surfaces such as parquet from damage and scratches. During transport, the plate can be easily grasped and lifted from underneath thanks to the truss feet. The holes specifically provided for this model allow the truss to be mounted off-center. This makes it possible, for example, to better compensate for an uneven weight distribution caused by the truss and TV set. Two ergonomic handles make carrying easier. Another centrally positioned handle can, for example, make it easier to lay cables in an already mounted truss. The timeless, well-thought-out design of the patented base plates combines a secure stand with a high degree of flexibility when aligning event structures. Product information: Outer dimensions: 80 x 80 cm Weight: approx. 40 kg Please refer to the images for further dimensions. The truss feet are already pre-assembled. Only the manufacturer-specific half cones need to be screwed in. Suitable for all common truss systems. Half cone and truss are not included in the delivery. Shipping: 10.99 per piece.

Specifications
