Description

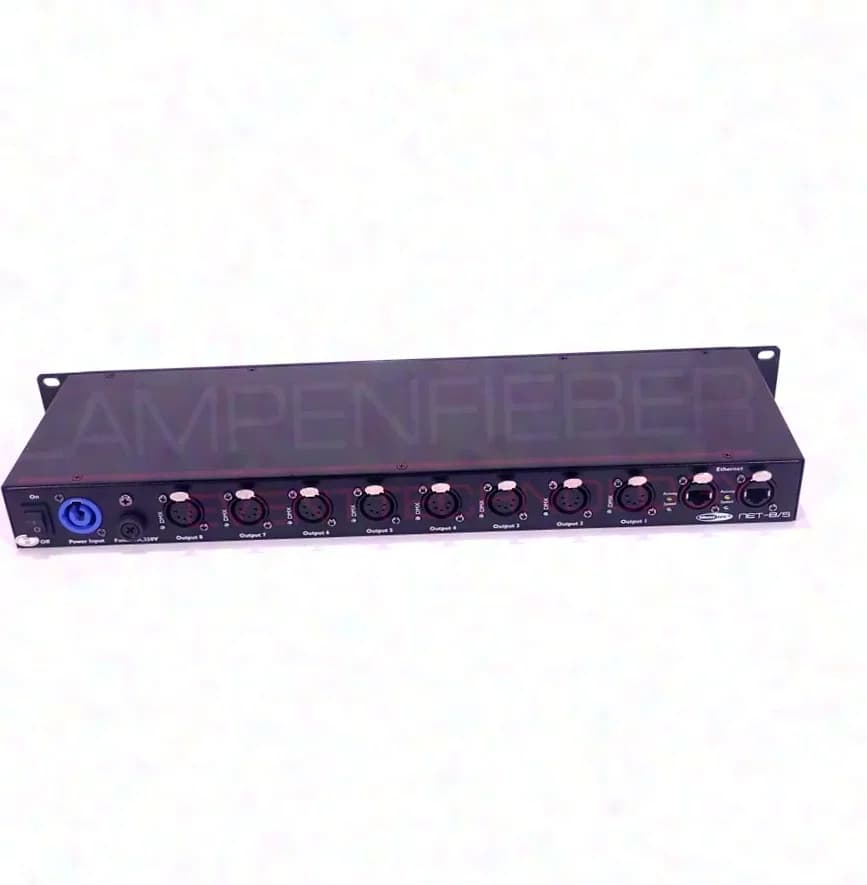

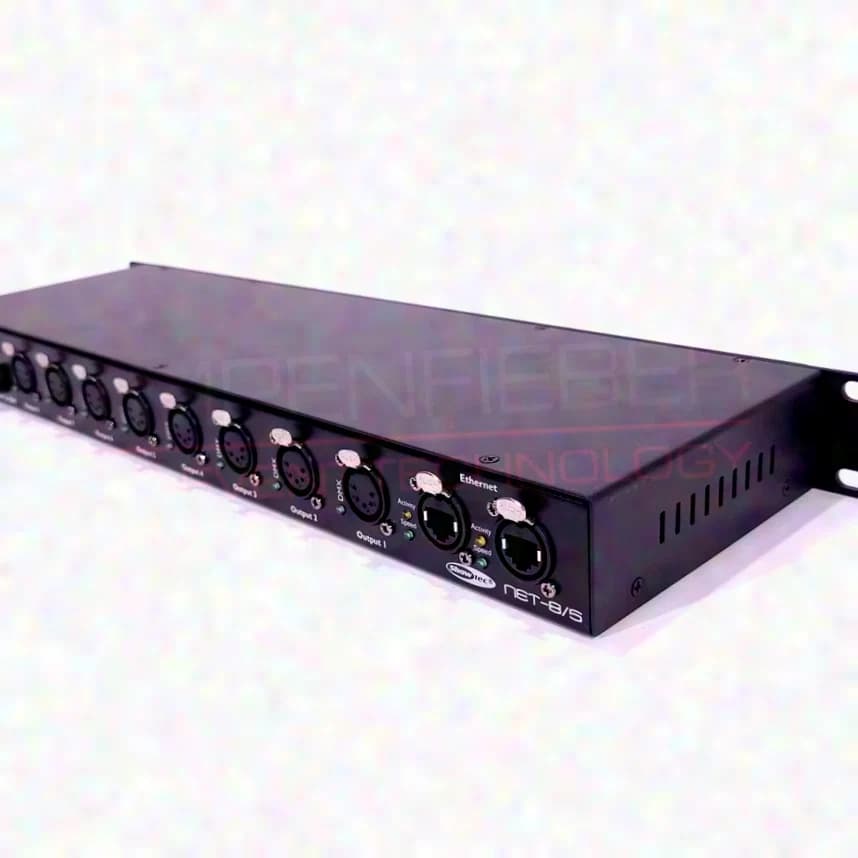

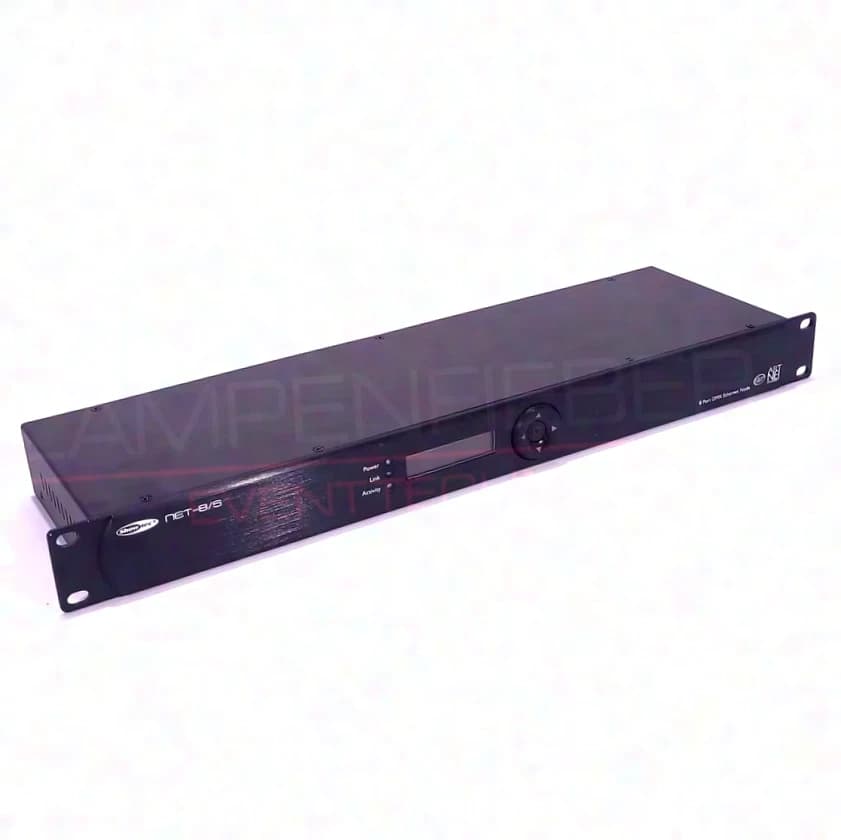

For sale is a modern network node for the bidirectional conversion of ArtNet and DMX-512 signals. Inspection and shipping are possible by prior arrangement. Info: Up to 4096 channels can be transmitted via a conventional CAT5 network cable. This makes the device suitable for both smaller events and more extensive event productions. The equipment includes an integrated network switch for use as a repeater, as well as eight galvanically isolated DMX-512 universes. These can optionally be used as inputs or outputs. Configuration is carried out directly on the device via the graphical display and the control buttons on the front panel. Connections: Network: 2x RJ45 DMX: 8x XLR, 5-pin Powercon connection Supported protocols: ArtNET, KlingNET, TCP/IPv4, DMX-512A Dimensions: 482 x 205 x 44 mm Supply voltage: 100-240 VAC, 50/60 Hz Maximum power consumption: 200 W Operating temperature: 0 to +40 °C Weight: 1.8 kg The sale is made excluding any liability under the warranty. Returns and exchanges are excluded. Errors and omissions excepted.
